IGBT DC Inverter Plasma Cutting Machine Semi Automatic for Copper Carbon Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | CUT100 | Automatic Grade | Semi-Automatic |
|---|---|---|---|
| Type | Cutting Machine | Voltage | 380V |
| Condition | New | Dimension(l*w*h) | 520*263*415 |
| Cutting Material | Copper, Carbon Steel, Iron, Metal Alloy | Color | Any Color You Wanted |
| Warranty | 1 Year | HS Code | 8456901000 |
| High Light | IGBT DC Inverter Plasma Cutting Machine,3P Plasma Cutting Machine,IGBT DC Inverter Portable Plasma Cutter |
||
Product Description

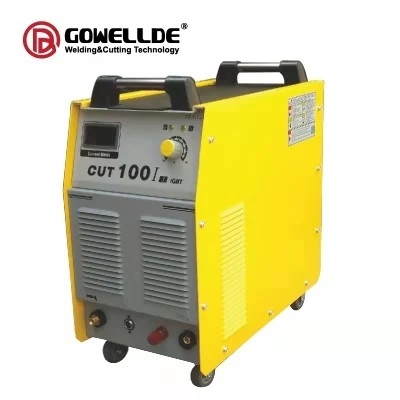

IGBT DC Inverter Cut Plasma Cutting Machine
Cut Plasma Machine Features
1.It can also use an external air source(the thickest cutting 50mm).
2. ARC function and it can weld 5.0mm electrode no stop(working current 350A).
3. It has the function of phase protection, and the built-in air source motor will not be burnt out when it is short of phase.
4. Waterproof, dust-proof, frost resistant structure, not afraid of the bad environment.
5. It can be applied to the generator power supply environment.
Technical Parameter:
|
Item |
CUT100 |
|||
|
Input power source(±15% 50/60HZ) |
3P~AC380V |
|||
|
Rated Input current (A) |
23 |
|||
|
Rated input power capacity (KVA) |
15.1 |
|||
|
Output current range (A) |
20-100 |
|||
|
No-load voltage (V) |
DC310V |
|||
|
Cutting Thickness |
1-45mm |
|||
|
Rated duty cycle (%) @40℃ |
60 |
|||
|
Efficiency (%) |
80 |
|||
|
Power factor (cosφ) |
0.93 |
|||
|
Protection class |
IP21 |
|||
|
Insulation class |
F |
|||
|
Dimensions (mm) |
520*263*415 |
|||
|
Weight (Kg) |
39 |
|||
About us
We can supply:MIG MMA Welder,ARC Welder,TIG Welder,Plasma cutting .More than 10 years production experience of OEM & ODM ,Inverter DC MMA/TIG Welding Machine.Using advanced IGBT Technology,excellent arc performance with solid wire in short circuit,globular and spray transfers flux or metal-cored wires in globular and spray transfer modes and Auto protection of over-voltage and over-current
FAQ
Q:Can you make your welding machines under my brand?
A:Yes, we can welding machines under your logo and it has the Minimum Order Quantity .
Q:I have not heard of General Welder company before, are you a new company?
A:General Welder company was established since 2012 by a team of members with welding machines exceptional knowledge and with over 10 years of experience in the welding machines Industry.
Q:.Can you offer welding machines for testing?
A:Yes, we can offer welding machines for the test.
Q:How do your factory do regarding quality control?
A:Our factory has gained the certificate and ISO9002 authentication. Quality makes us who we are today. We focus on the welding machines quality from the very beginning to the end.
Q:Can I buy other factory's products directly from you?
A:Yes, of course. There are already many customers cooperating with us in this way. We have over 10 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.
Q:Why should I choose your welding machines?
A:This is a question in many buyers mind, we are a quality-based professional welding machines company with great products and service, and we are a skill-oriented company. We believe in smart work and hard work combined. We never lose sight of our customer's requirements. We provide world-class training sessions to our staff and our associates.
