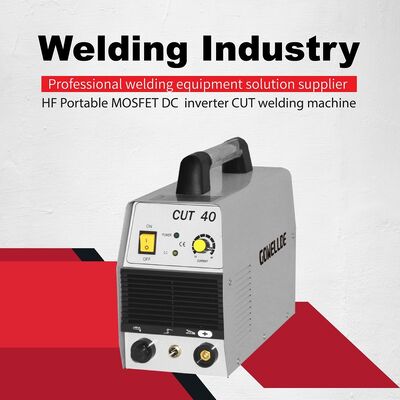

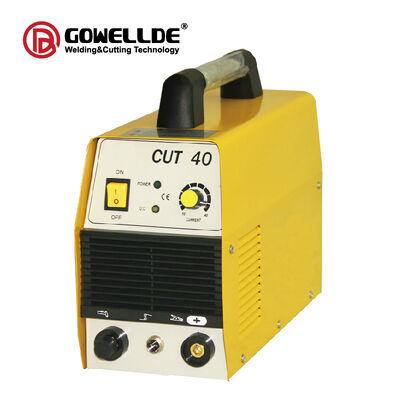

CUT40 Portable Plasma Cutter IGBT Single Tube Inverter AC110V / 220V
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Gowellde | Model NO. | CUT40 |
|---|---|---|---|
| Material | Carbon Steel, Stainless Steel, Low-Alloy Steel | Current | Direct Current |
| Transport Package | Standards Sea Carton Or Customized | Specification | CE |
| Warranty Time | 1 Year | Package | Plain Or Colorful Carton |
| Input Power Source | 1~AC110/220V | No-load Voltage (V | DC310V |
| Efficiency | 80 | HS Code | 8515319900 |
| High Light | HF Touched Portable Plasma Cutter,IGBT Single Tube Portable Plasma Cutter,GOWELLDE IGBT Plasma Cutter |
||
Product Description
CUT40 Portable Plasma Cutter Function IGBT Plasma Cutter,Cutting Machine,1~AC110/220V
Features
.Using advanced IGBT single tube inverter technology,high frequency and quick response
.Cutting capacity increases 1.8 times higher in cutting speed comparing with flame cutter.
.Thick metal plate can be cut easily and quickly.
.Suitable for cutting stainless steel, copper, iron and aluminum metal etc.
.Simple operation and smooth cutting surface.
.HF touched Arc-starting cutting.
|
Technical parameters |
||||||
|
Item |
CUT40 |
CUT40 |
CUT40 |
|||
|
Input power source(±15% 50/60HZ) |
1~AC220V |
1~AC110V |
1~AC110/220V |
|||
|
Rated Input current (A) |
30 |
60 |
60/30 |
|||
|
Rated input power capacity (KVA) |
6.6 |
6.6 |
6.6 |
|||
|
Output current range (A) |
20-40 |
20-40 |
20-40 |
|||
|
No-load voltage (V) |
DC310V |
DC310V |
DC310V |
|||
|
Cutting Thickness |
1-15mm |
1-15mm |
1-15mm |
|||
|
Rated duty cycle (%) @40℃ |
60 |
60 |
60 |
|||
|
Efficiency (%) |
80 |
80 |
80 |
|||
|
Power factor (cosφ) |
0.73 |
0.73 |
0.73 |
|||
|
Protection class |
IP21 |
IP21 |
IP21 |
|||
|
Insulation class |
F |
F |
F |
|||
|
Dimensions (mm) |
400*156*291 |
|||||
|
Weight (Kg) |
9 |
9 |
9 |
|||
Why choice us
•Workship standard production workshop.
•Professional technical personnel rich operational experience.
•Excellent technical strength.
•OEM/ODM service.
•Electrical equipment manufacturing industry for more than 20 years.
