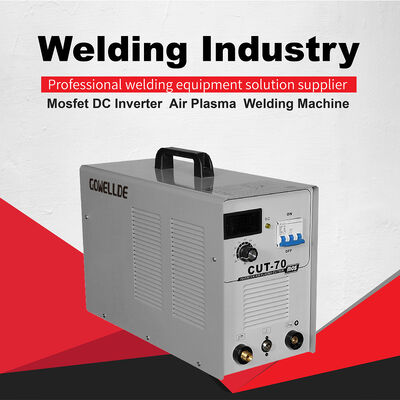

HF Touched Portable Plasma Cutting Machine Built In Air Pump With mosfet DC MMA Function
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Gowellde | Type | CUT70 |
|---|---|---|---|
| Warranty | 1 Year | Voltage | AC380V |
| Weight | 19 | Dimension(l*w*h) | 505*204*375 |
| Efficiency (%) | 80 | Protection Class | IP21 |
| No-load Voltage (V) | 295 | Insulation Class | F |
| High Light | HF Touched Portable Plasma Cutting Machine,Air Pump Portable Plasma Cutting Machine,MMA Plasma Cutter With Built In Air |
||
Product Description
HF Touched Portable Plasma Cutting Machine Built In Air Pump With mosfet DC MMA Function
CUT70 mos cutting machine features:
1. Built in Air Pump IGBT Air Plasma Cuter,Cutting Machine with MMA Function.
2. Using advanced IGBT module technology and soft-switching technology.
3. Cutting capacity increases 1.8 times higher in cutting speed comparing with flame cutter.
4. Advamced pilot arc system design,100% arc start,arc continuously.
5. Bulit-in over current,over heat,less voltage,lack of phase protections,more safety on operation.
CUT70 mos cutting machine parameters:
| Input Voltage | AC380V±15% |
| Frequency | 50/60 |
| Rated Input Current | 41 |
| No-load Voltage | 295 |
| Output Current Range | 20-70 |
| Rated Output Voltage | 104 |
| Duty Cycle | 60 |
| No-load Loss | 60 |
| Efficiency | 80 |
| Power Factor | 0.73 |
| Insulation Grade | F |
| Housing Protection Grade | IP21 |
| Arcing Way | Contact |
| Recommended Air Pressure | 4-5 |
| Cutting Thickness | 1-25 |
| Net weight | 19 |
| Dimension | 505*204*375 |
