IGBT Inverter Technology Plasma Cutting Machine With High Load Sustained Rate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | CUT160 | Control Mode | IGBT |
|---|---|---|---|
| Warranty | 1 Year | Voltage | AC380V |
| Host Weight | 70 | Rated Power | 200W |
| After-sales Service Provided | Online Support | Condition | New |
| High Light | IGBT Inverter Plasma Cutting Machine,AC380V Plasma Cutting Machine,200W Portable Plasma Cutter |
||
Product Description

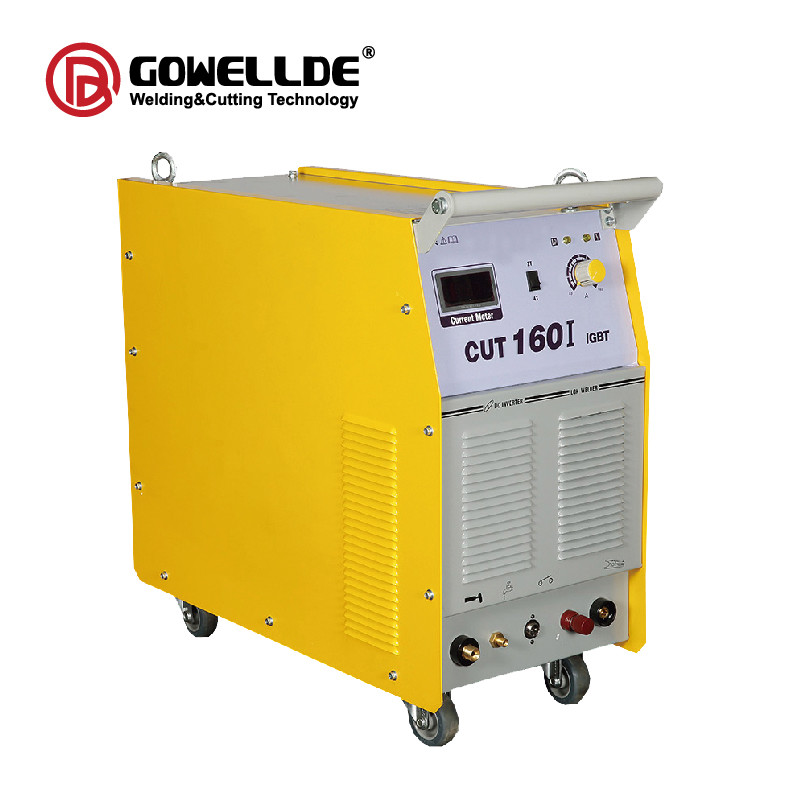

IGBT Inverter Technology Plasma Cutting Machine with High Load Sustained Rate
Plasma Cutting Machine Features:
1 Better external and dynamic characteristic than transformer type cutting machine, with excellent performance like high successful rates of arc striking, good arc stiffness, smooth cut.
2 Current rising slowly when arc starting, effectively extend the life of electrode and nozzle.
3 stable cutting current, it doesn't influence the cutting current when voltage fluctuates within 10%.
4 Less pollution, more economy, effectiveness than flame cutting machine.
5 Maximum cutting thickness up to 100mm,also can punch a hole or groove welding.
Parameters:
| Type | CUT160 | |
| control mode | IGBT inverter | |
| Rated input voltage | AC380V | |
| Rated input current(A) | 40 | |
| Rated input capacity(KVA) | 26.3 | |
| Rated output current(A) | 160 | |
| Cable cross-sectional area | mains input(mm2) | 8 |
| power output(mm2) | 25 | |
| ground wire(mm2) | 4 | |
| Rated output voltage(V) | 144 | |
| Duty cycle(%) | 100 | |
| Rated no-load voltage(V) | 315 | |
| Current adjustment range(A) | 40-160 | |
| Quality cutting thickness (carbon steel)(mm) | 1~35 | |
| Maximum cutting thickness (carbon steel)(mm) | 55 | |
| Gas pressure range(MPa) | 0.4-0.6 | |
| Applicable air compressor capacity(m3) | ≥0.6 | |
| Arc ignition mode | High pressure non-contact | |
| Enclosure rating | IP21S | |
| Insulation rating | F | |
| Cooling method | Air | |
| Power factor | 0.93 | |
| Dimensions(mm) | 820*390*940 | |
| Host weight(KG) | 70 | |
FAQ
Q:Can you make your welding machines under my brand?
A:Yes, we can welding machines under your logo and it has the Minimum Order Quantity .
Q:I have not heard of General Welder company before, are you a new company?
A:General Welder company was established since 2012 by a team of members with welding machines exceptional knowledge and with over 10 years of experience in the welding machines Industry.
Q:.Can you offer welding machines for testing?
A:Yes, we can offer welding machines for the test.
Q:Can I buy other factory's products directly from you?
A:Yes, of course. There are already many customers cooperating with us in this way. We have over 10 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.
Q:Why should I choose your welding machines?
A:This is a question in many buyers mind, we are a quality-based professional welding machines company with great products and service, and we are a skill-oriented company. We believe in smart work and hard work combined. We never lose sight of our customer's requirements. We provide world-class training sessions to our staff and our associates.
Our Services
1. Your inquiry related to our product & price will be replied within 24 hours.
2. Well-trained & experienced staff are to answer all your inquiries in English.
3. Working time: 8:00am ~17:30pm, Monday to Saturday. (UTC+8)
4. Customized solution & perfect after-sale service.
5. For large order, engineer can be sent to your country for on-site mainternace instructions.
6. Our advantage: (1)Competitive price (2). Good quality (3). Timely delivery (4) New model launch yearly(5) Own manufacturing (6) Own quality control
