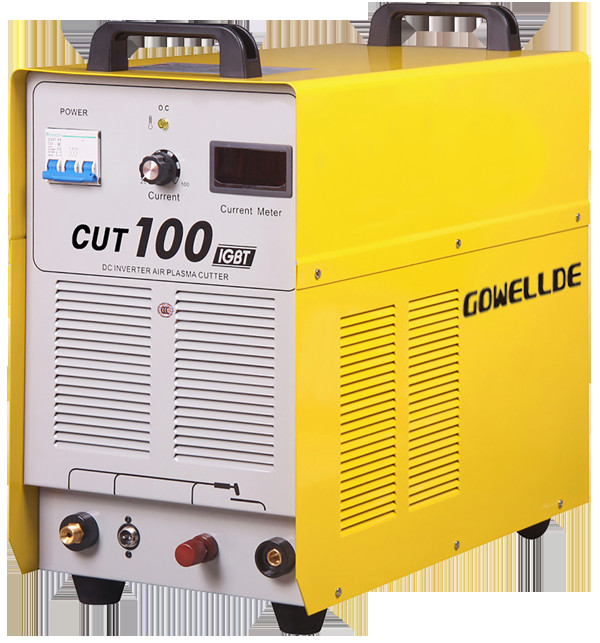

Cut100i Industrial 100amps IGBT Inverter Plasma Cutter AC415V

Place of Origin GUANGDONG,CHINA
Brand Name GOWELLDE
Certification CE
Model Number CUT100I
Minimum Order Quantity 10PCS
Packaging Details CARTON
Delivery Time 30 DAYS
Payment Terms T/T, L/C, Western Union
Supply Ability 30000PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name IGBT Plasma Cutter Voltage(V) AC415V ±15%
Current Range(A) 20-100 Arc Striking HF/ Pilot Arc
Max. Cutting Thickness(mm) 45 IGBT FF150R12KS4*1
High Light

Cut100i Inverter Plasma Cutter

,

IGBT Inverter Plasma Cutter

,

100amps Portable Plasma Cutter

Leave a Message
Product Description



Adopting 20KHz IGBT inverter technology,extremely reliable.Untouched pilot arc start system - Smooth

Arc-Striking with HF Control.Quality cutting thickness with fast cutting speed,smooth cutting,small deformation

and less hang slag.Auto-Protection against over-voltage,over-current and over-heating.Energy Saving -

Compared with the traditional cutting machine more efficient.

Specification:





Model Item CUT 100I
Voltage(V) AC415V ±15%
Frequency(Hz) 50-60
Input Power(KVA) 15
No-load Voltage(V) 275
Current Range(A) 20-100
Rated Duty Cycle 60%
Arc Striking HF/ Pilot Arc
Quality cutting thickness(mm) 25
Max. cutting Thickness(mm) 45
Recommended Cutting Pressure(Kgs/cm2) 4-6
Power Factor 0.93
Efficiency(%) 85
Insulation Grade F
Housing Protection Grade IP21S
Weight(Kg) 35
(L*W*H)(mm) 550*280*435
Carton CBM(m3) 0.162
Specification
Capacitor 470uF/400V*4
IGBT FF150R12KS4*1
Output Rectifier DAC2F100P6S*1
DAC2F100N6S*1
