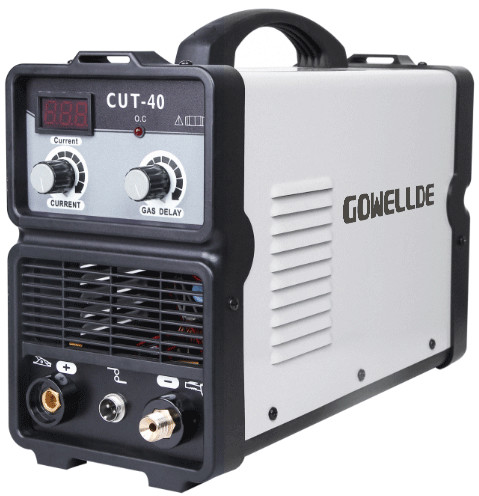

IGBT Single Phase Plasma Cutting Machine 40A Portable Plasma Cutter 4.9KVA
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | IGBT Single Phase Plasma Cutting Machine,40A Portable Plasma Cutter,4.9KVA Portable Plasma Cutter |
||
|---|---|---|---|
Product Description
CUT40 IGBT SINGLE PHASE 40AMPS PLASMA CUTTER IGBT Plasma Cutter Air Inverter Plasma Cutting Machine
1. Air Plasma Arc Cutter takes compressed air source and AC current as energy source, at low cost in cutting.
2. Suitable for stainless steel, aluminum, copper, titanium, cast iron, carbon steel, alloy steel, alloy metal and nearly all the metals cutting.
3. High cutting efficiency
4. Complete accessories: Cutting torch, welding cable, earth clamp, carton box.
Technical Parameter:
| Inverter Air Plasma Cutter | CUT-40 |
| Input power voltage(V) | AC220V±10% |
| Frequency(Hz) | 50/60 |
| Rented input power capacity(KVA) | 4.9 |
| Rate input current(A) | 44.2 |
| No-load voltage(V) | 220 |
| Current range(A) | 15-40 |
| Rated output voltage(V) | 96 |
| Rated duty cycle(%) | 50 |
| No-load power(W) | 40 |
| Efficiency(%): | 85 |
| Power factor | 0.93 |
| Insulation class | B |
| Protection class | IP21 |
| Arc-starting | Touch |
| Air pressure | 0.4 |
| Gas flow(L/min) | 80 |
| Max Thickness(mm): | 12 |
| NW(kg) | 8.5 |
| Dimensions(mm) | 371*153* 233 |
