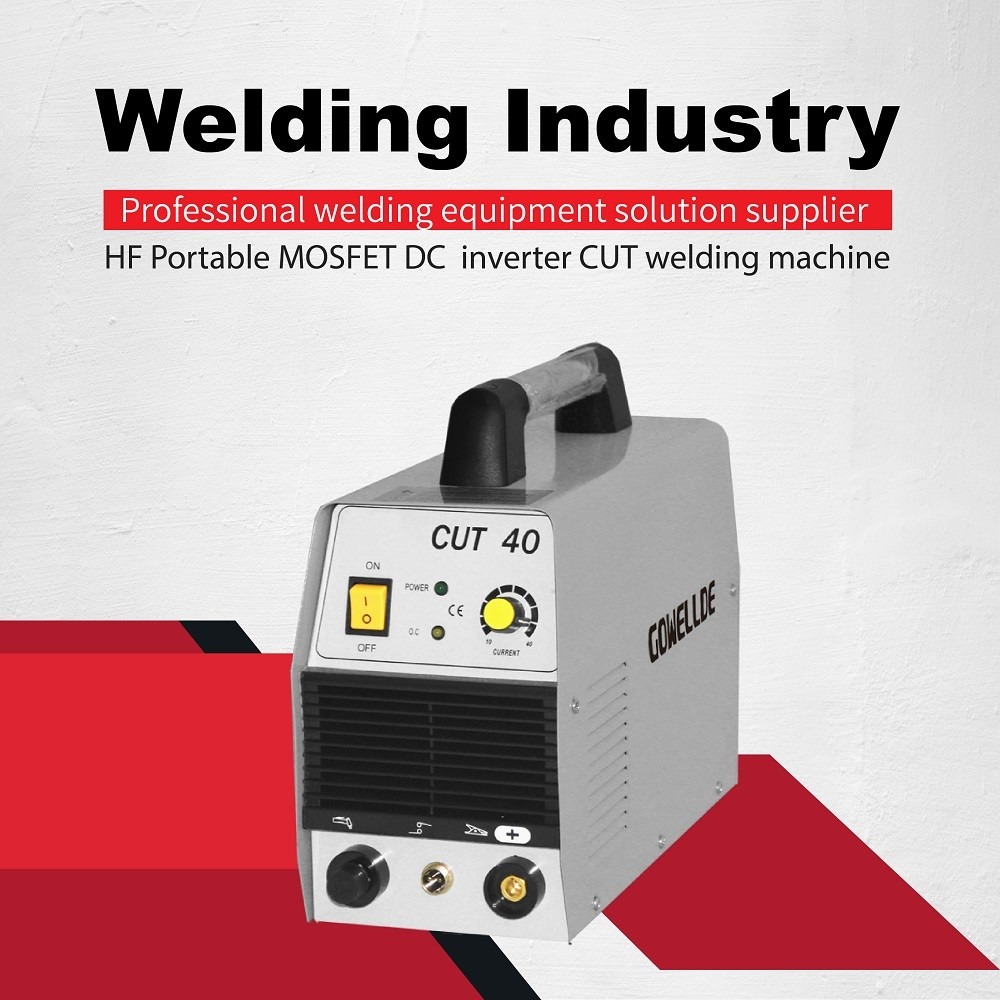

Alloy Metal Portable Plasma Cutter 4.9 KVA Cutting Machine GOWELLDE
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Portable Plasma Cutter | Brand | GOWELLDE |
|---|---|---|---|
| Certificate | CE | ||
| High Light | Alloy Metal Portable Plasma Cutter,4.9 KVA Plasma Cutting Machine,GOWELLDE Plasma Cutting Machine |
||
Product Description
CUT40 IGBT SINGLE PHASE 40AMPS PLASMA CUTTER IGBT Plasma Cutter Air Inverter Plasma Cutting Machine
1. Air Plasma Arc Cutter takes compressed air source and AC current as energy source, at low cost in cutting.
2. Suitable for stainless steel, aluminum, copper, titanium, cast iron, carbon steel, alloy steel, alloy metal and nearly all the metals cutting.
3. High cutting efficiency
4. Complete accessories: Cutting torch, welding cable, earth clamp, carton box.
Technical Parameter:
| Inverter Air Plasma Cutter | CUT-40 |
| Input power voltage(V) | AC220V±10% |
| Frequency(Hz) | 50/60 |
| Rented input power capacity(KVA) | 4.9 |
| Rate input current(A) | 44.2 |
| No-load voltage(V) | 220 |
| Current range(A) | 15-40 |
| Rated output voltage(V) | 96 |
| Rated duty cycle(%) | 50 |
| No-load power(W) | 40 |
| Efficiency(%): | 85 |
| Power factor | 0.93 |
| Insulation class | B |
| Protection class | IP21 |
| Arc-starting | Touch |
| Air pressure | 0.4 |
| Gas flow(L/min) | 80 |
| Max Thickness(mm): | 12 |
| NW(kg) | 8.5 |
| Dimensions(mm) | 371*153* 233 |
Advantages Of Electric Welding Machine:
Electric welding machine uses electric energy, which can be converted into heat energy instantaneously, electric is very common, electric welding machine is suitable for working in dry environment, does not need too many requirements, because the volume is small, the operation is simple, the use is convenient, the speed is faster, the advantages such as the strength of welds after welding are widely used in various fields, especially for products requiring high strength, which can instantly connect the same metal material (or dissimilar metal, but different welding method) permanently, after heat treatment, the weld is as strong as the base metal and sealed well, which solves the problem of sealing and strength for the manufacture of storage gas and liquid containers.
Introduction to the principle of electric welding machine:
The electric welding machine, which uses inductance to make contact and the object to be touched to complete the welding function, is actually an extremely high power transformer, which can complete the conversion of electric energy to thermal energy in an instant, with the advantages of simple operation, convenient carrying, fast speed and strong performance, it has been widely used, whether in actual use or in the school laboratory.
