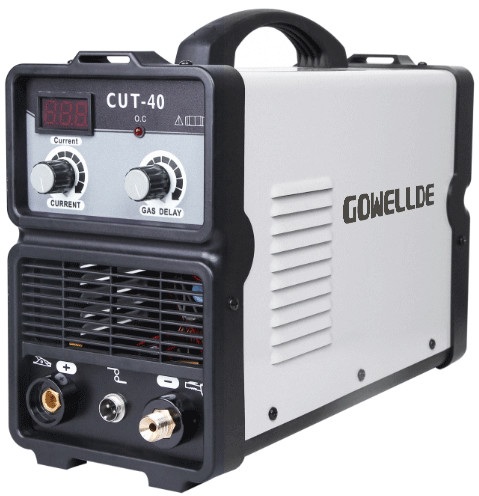

Cast Iron IGBT Portable Plasma Cutter IP21 85% Efficiency AC Current
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Portable Plasma Cutter | Brand | GOWELLDE |
|---|---|---|---|
| Certificate | CE | Protection Class | IP21 |
| High Light | Cast Iron Portable Plasma Cutter,IP21 IGBT Plasma Cutter,85% Efficiency IGBT Plasma Cutter |
||
Product Description
CUT40 IGBT SINGLE PHASE 40AMPS PLASMA CUTTER IGBT Plasma Cutter Air Inverter Plasma Cutting Machine
1. Air Plasma Arc Cutter takes compressed air source and AC current as energy source, at low cost in cutting.
2. Suitable for stainless steel, aluminum, copper, titanium, cast iron, carbon steel, alloy steel, alloy metal and nearly all the metals cutting.
3. High cutting efficiency
4. Complete accessories: Cutting torch, welding cable, earth clamp, carton box.
Technical Parameter:
| Inverter Air Plasma Cutter | CUT-40 |
| Input power voltage(V) | AC220V±10% |
| Frequency(Hz) | 50/60 |
| Rented input power capacity(KVA) | 4.9 |
| Rate input current(A) | 44.2 |
| No-load voltage(V) | 220 |
| Current range(A) | 15-40 |
| Rated output voltage(V) | 96 |
| Rated duty cycle(%) | 50 |
| No-load power(W) | 40 |
| Efficiency(%): | 85 |
| Power factor | 0.93 |
| Insulation class | B |
| Protection class | IP21 |
| Arc-starting | Touch |
| Air pressure | 0.4 |
| Gas flow(L/min) | 80 |
| Max Thickness(mm): | 12 |
| NW(kg) | 8.5 |
| Dimensions(mm) | 371*153* 233 |
1 Standard digital control port, provide 1:1 arc voltage, the digital control dedicated signal to judge arc striking successful.
The industry's first new arc maintenance technology, millisecond level high-frequency ignition, the smallest high-frequency interference.
2 Preset current function, accurate preset cutting current, five levels adjustable, cut different thickness plate.
3 Better function than leakage resistance cutting machine, a high success rate of arc striking, good arc stiffness, smooth cut, excellent process performance.
4 Current rise slowly when cutting arc starting, effectively extend the useful life of electrode and nozzle.
5 Cutting current stable, it doesn't influence to cutting current when voltage fluctuates within 10%.
6 High load sustained rate, no stop work for a long time under the max current cutting.
7 Non-contact arc striking, instant arcing, arc strong, conveniently cut the metal which has rust and paint.
8 Less pollution, more economy, more effective, more environmentally friendly than flame cutting machine.
9 Over-current, over-heat, and overload protection system, make sure the equipment works reliably.
