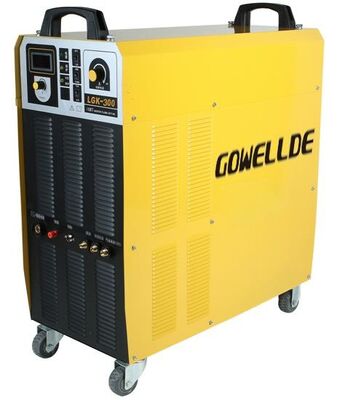

Dustproof Mini Portable Plasma Cutter 300A Max Cutting 90mm Thickness
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Plasma Cutter | Model | CUT300 |
|---|---|---|---|
| Voltage | AC380V | Inverter | IGBT Model |
| Current | 30-300 | Max Cutting | 90MM |
| High Light | Dustproof Portable Plasma Cutter,300A Portable Plasma Cutter,90mm Thickness Portable Mini Plasma Cutter |
||
Product Description
Max Cutting 90MM Heavy duty IGBT Module Cutter CUT300 IGBT MODULE INDUSTRIAL 300AMPS PLASMA CUTTER
1 Waterproof, windproof, dustproof, suit to work of the high metal dust environment.
2 The industry's first new arc maintenance technology, millisecond level high-frequency ignition, the smallest high-frequency interference.
3 Preset current function, accurate preset cutting current, five levels adjustable, cut different thickness plate.
4 Better function than leakage resistance cutting machine, a high success rate of arc striking, good arc stiffness, smooth cut, excellent process performance.
4 Current rise slowly when cutting arc starting, effectively extend the useful life of electrode and nozzle.
5 Original cold water connector, high sensitivity water pressure switch prevent the cutting torch from burning out when water shortage.
6 High load sustained rate, no stop work for a long time under the max current cutting.
7 Non-contact arc striking, instant arcing, arc strong, conveniently cut the metal which has rust and paint.
8 Less pollution, more economy, more effective, more environmentally friendly than flame cutting machine.
9 Over-current, over-heat, and overload protection system, make sure the equipment works reliably.
10 2T/4T Function, reducing the cutting labor intensity.
Technical Parameter:
| Type | CUT300 | |
| Control Model | IGBT Inverter | |
| Rate Input Voltage | AC380V | |
| Rate Input Capacity(KVA) | 14.5 | |
| Rate Input Current(A) | 22 | |
| Cable Cross Sectional Area | Main Input(MM2) | 16 |
| Power Output(MM2) | 50 | |
| Ground Wire(MM2) | 4 | |
| Duty Cycle(%) | 100 | |
| Rated Output Voltage(V) | 200 | |
| Rated Output Current(A) | 300 | |
| Rated Output No-load Voltage(V) | 330 | |
| Output Current Adjustment Range(A) | 30-300 | |
| Quality Cutting thickness(Carbon Steel)(MM) | 3-70 | |
| Max Cutting Thickness(Carbon Steel)(MM) | 90 | |
| Use Plasma Gas | Compressed Air | |
| Air Pressure Range(MPA) | 0.4-0.6 | |
| Suitable Air Compression Machines's Capacity(M3) | ≥0.9 | |
| Arc Ignition Mode | High Pressure Non-contact | |
| Enclosure Rating | IP21S | |
| Insulation Rating | F | |
| Cooling Method | Air | |
| Power Factor | 0.93 | |
| Dimensions(MM) | 820*390*940 | |
| Host Weight(KG) | 90 | |
