Submerged Arc IGBT Module Inverter AC 380V Welding Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | MZ1000 | Name | Submerged ARC Welding Machine |
|---|---|---|---|
| Frequency(HZ) | 50/60 | Power Factor | 0.93 |
| Duty Cycle(%) | 60 | Wire-feeding Speed(mm) | 3-15 |
| Voltage | 16.5-31.5 | Dimensions | 515*263*440 |
Product Description

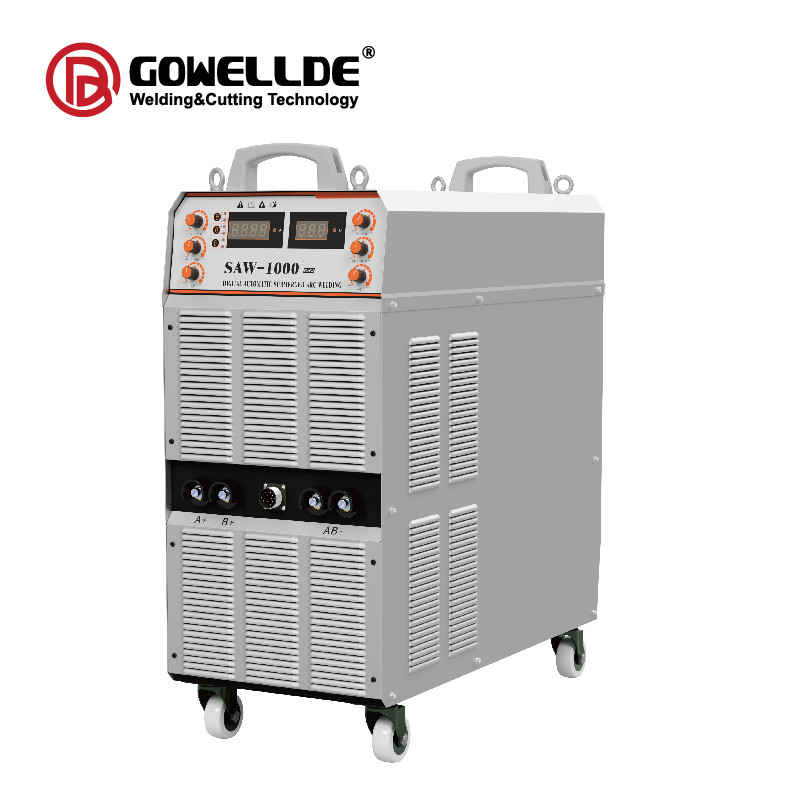

Submerged Arc IGBT Module Inverter AC 380V Welding Machine
Submerged ARC welding machine Features :

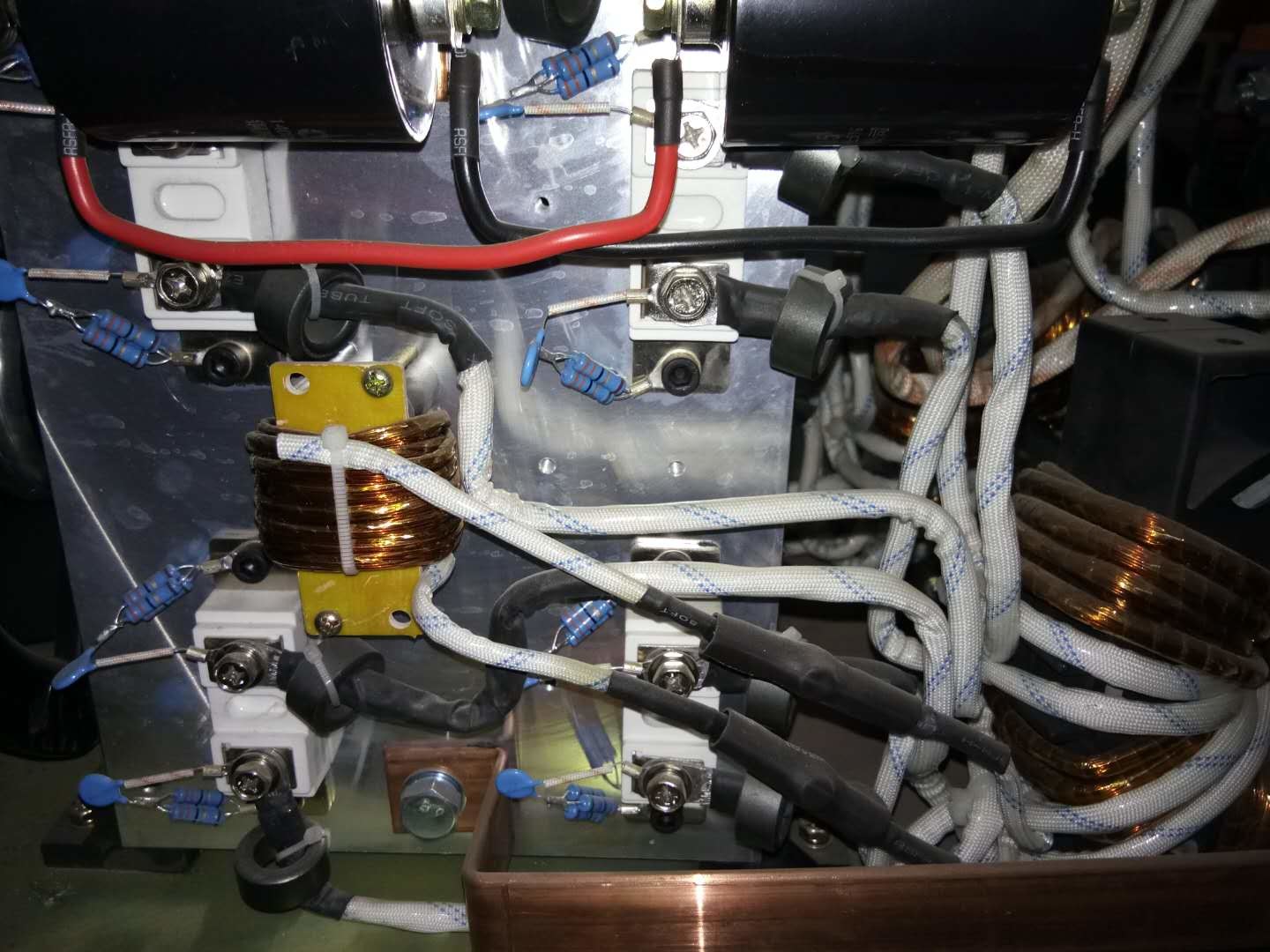

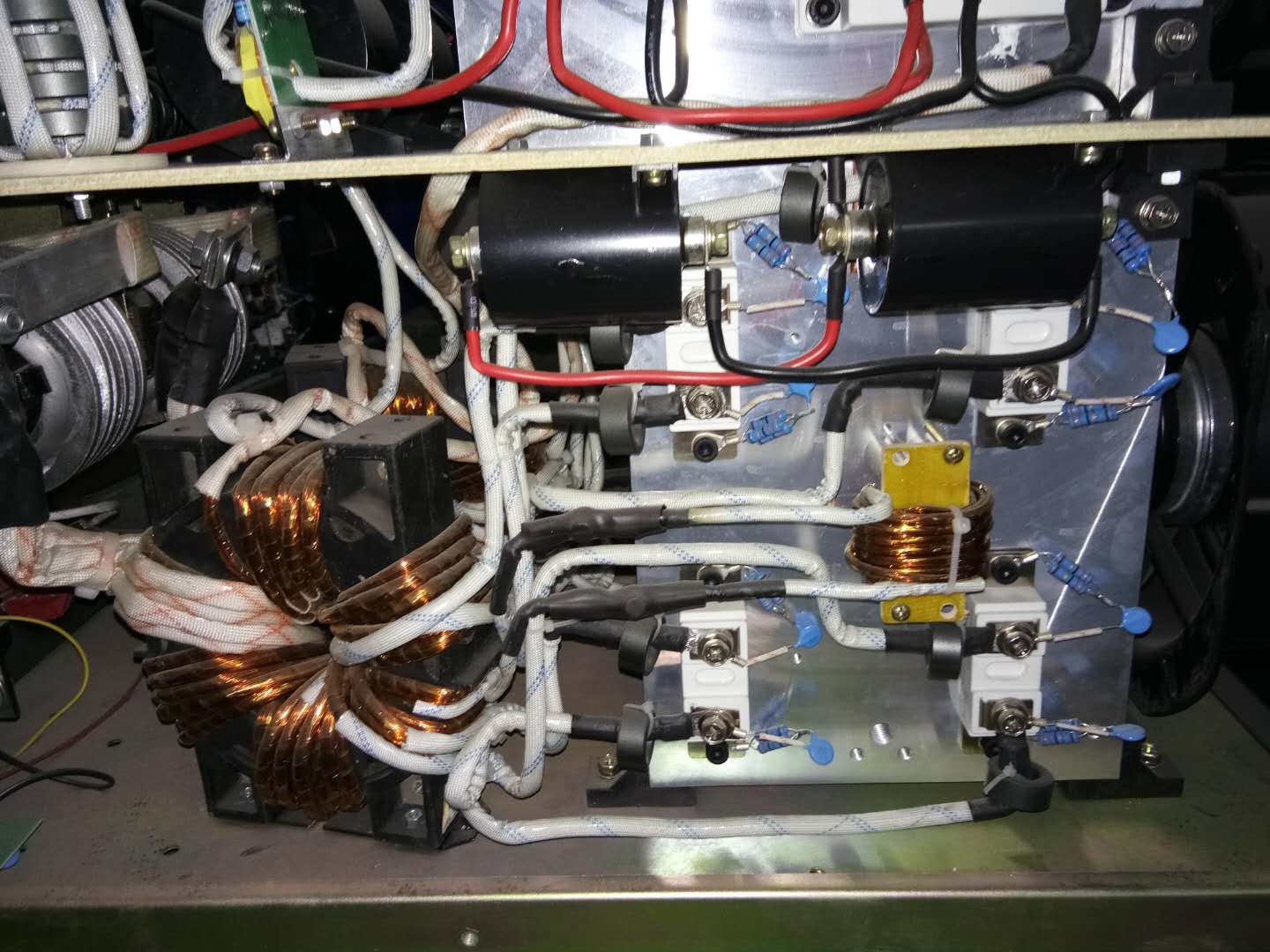

1 With double heavy-duty IGBT mudule consist of full-bridge inverter to output extreme strong power
2 Tri-welding process, SAW ,carbon arc gouging and MMA
3 Auto-Protection against over-voltage, over-current and over-heating
4 With flexible wire-feeding speed and stable arc to achieve good melting depth and uniform and perfect welding seam
5 Apply for shipyard, heavy iron fabrication, large power plant construction etc.
Parameters:
|
Input Voltage(V) |
AC380V±15% |
|
Frequency(HZ) |
50/60 |
|
Rated Input Current(A) |
21.1 |
|
Output Current Range(A) |
100-1000 |
|
Rated Output Voltage(V) |
16.5-31.5 |
|
Duty Cycle(%) |
60 |
|
Power Factor |
0.93 |
|
Efficiency(%) |
85 |
|
Type of Wire Feeder |
Separated |
|
Wire-feeding Speed(mm) |
3-15 |
|
Wire Diameter(mm) |
4.0/5.0 |
|
Housing Protection Grade |
IP21 |
|
Insulation Grade |
F |
|
Output Cable(mm) |
35+ |
|
Net Weight(KG) |
85.5 |
|
Dimension(mm) |
515*263*440 |
Our advantage
•Workship standard production workshop.
•Professional technical personnel rich operational experience.
•Excellent technical strength.
•OEM/ODM service.
•Electrical equipment manufacturing industry for more than 20 years.
