ARC160 Handheld Arc Welder 2.5mm IGBT Portable Inverter Welding Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ARC160 Handheld Arc Welder | Output Current Range(A) | 20-160 |
|---|---|---|---|
| Power Factor | 0.73 | Housing Protection Grade | IP21S |
| Dimensions(mm) | 360*300*115 | MMA/ARC MINI 160 Rated Input Voltage(V) AC220V±15% Frequency(HZ) 50/60 Rated Input Power(KVA) 2.2 Ra | MMA/ARC MINI 160 |
| High Light | ARC160 Handheld Arc Welder,2.5mm Handheld Arc Welder,IGBT Portable Inverter Welding Machine |
||
Product Description

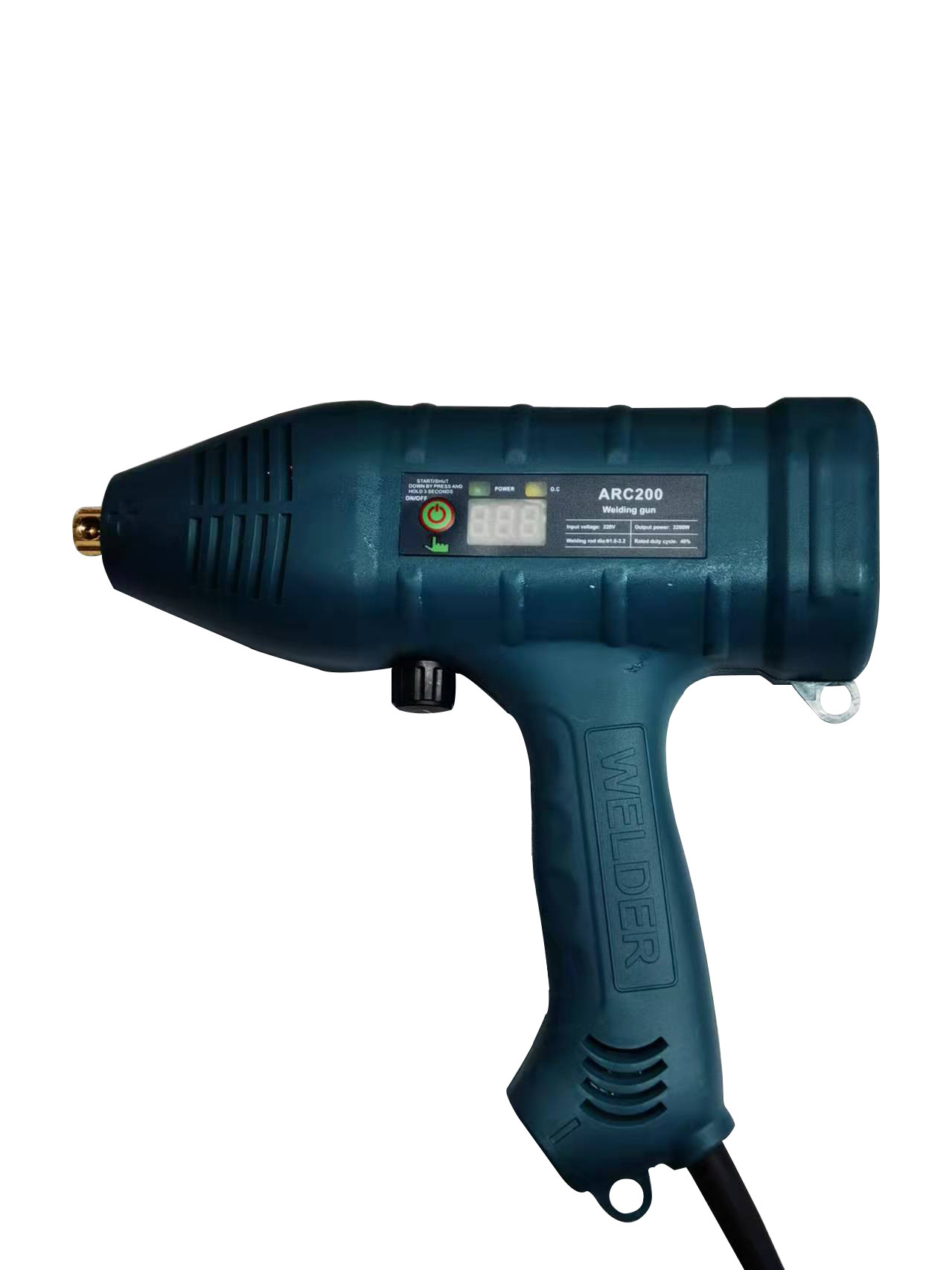

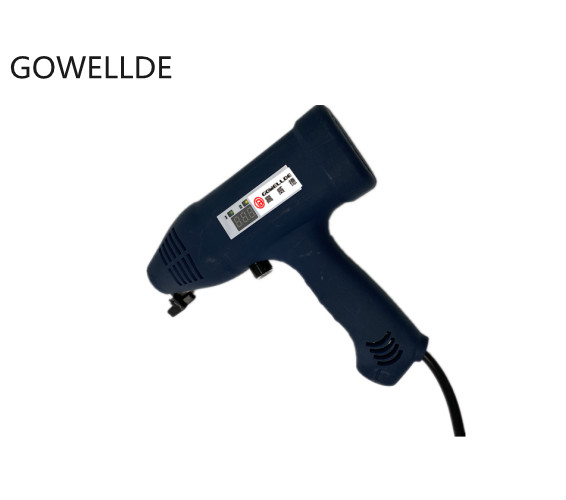

Handheld mini Arc160 DC Inverter IGBT Portable Inverter Welding Machines

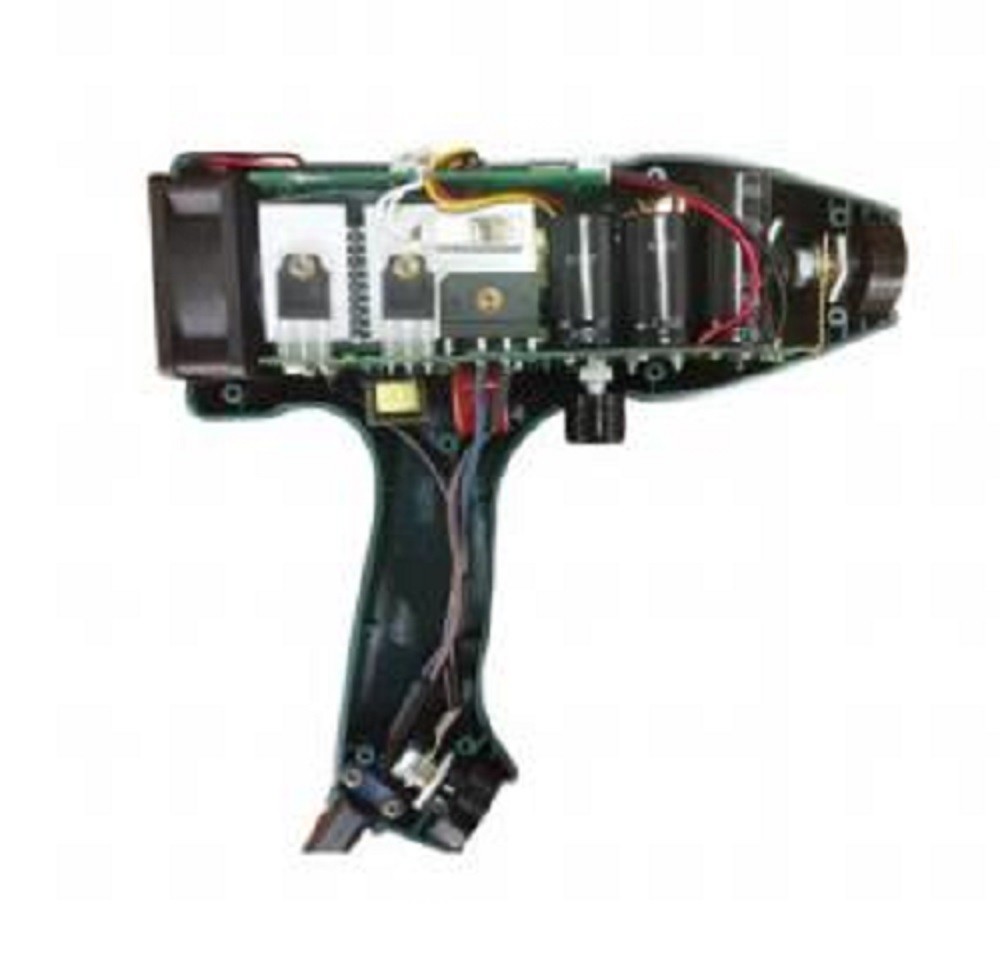

1. Using the latest IGBT inverter technology, high reliability.
2. Portable design, widely used for working at height, field operations, interior decoration and other projects.
3. Stable welding current, available for the welding rods of Φ1.6-2.5mm.
4. Stable power supply voltage, super power grid compensation capacity, set abnormal voltage protect for higher reliability.
5. High inverter frequency, more effective and energy saving.
Technical Parameter:
| Type | MMA/ARC MINI 160 |
| Rated input voltage(V) | AC220V±15% |
| Frequency(HZ) | 50/60 |
| Rated input power(KVA) | 2.2 |
| Rated input current(A) | 15.3 |
| Rated no-load voltage(V) | 60 |
| Output current range(A) | 20-160 |
| Rated output voltage(V) | 26.4 |
| Duty cycle(%) | 40% |
| Efficiency(%) | 80 |
| Power factor | 0.73 |
| Insulation level | F |
| Housing Protection Grade | IP21S |
| NW(kg) | 1.4 |
| Dimensions(mm) | 360*300*115 |
| Welding electrode diameter(mm) | ф2.5-3.2 |
