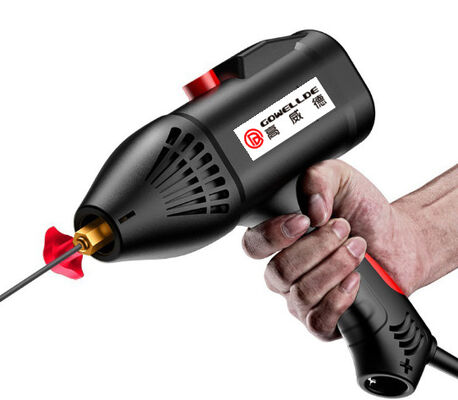

Handheld Mini Arc160 Inverter Welding Machines DC Inverter IGBT Portable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | MMA/ARC MINI 160 | Name | IGBT Portable Inverter Welding Machines |
|---|---|---|---|
| Rated Input Voltage(V) | AC220V±15% | Frequency(HZ) | 50/60 |
| Rated Input Power(KVA) | 2.2 | Output Current Range(A) | 20-160 |
| Highlight | AC220V Inverter Welding Machines,Arc160 Inverter Welding Machines,IGBT Portable Handheld ARC Welder |
||
Product Description
New arrival new design handheld mini Arc160 DC Inverter IGBT Portable Inverter Welding Machines
1. Using the latest IGBT inverter technology, high reliability.
2. Portable design, widely used for working at height, field operations, interior decoration and other projects.
3. Stable welding current, available for the welding rods of Φ1.6-2.5mm.
4. Stable power supply voltage, super power grid compensation capacity, set abnormal voltage protect for higher reliability.
5. High inverter frequency, more effective and energy saving.
6. Arc starting easier, fewer spatters, stable current and shaping well
7. Suitable for welding low and medium-carbon steels, alloy steel and all other ferrous metals.
Technical Parameter:
| Type | MMA/ARC MINI 160 |
| Rated input voltage(V) | AC220V±15% |
| Frequency(HZ) | 50/60 |
| Rated input power(KVA) | 2.2 |
| Rated input current(A) | 15.3 |
| Rated no-load voltage(V) | 60 |
| Output current range(A) | 20-160 |
| Rated output voltage(V) | 26.4 |
| Duty cycle(%) | 40% |
| Efficiency(%) | 80 |
| Power factor | 0.73 |
| Insulation level | F |
| Housing Protection Grade | IP21S |
| NW(kg) | 1.4 |
| Dimensions(mm) | 360*300*115 |
| Welding electrode diameter(mm) | ф2.5-3.2 |
