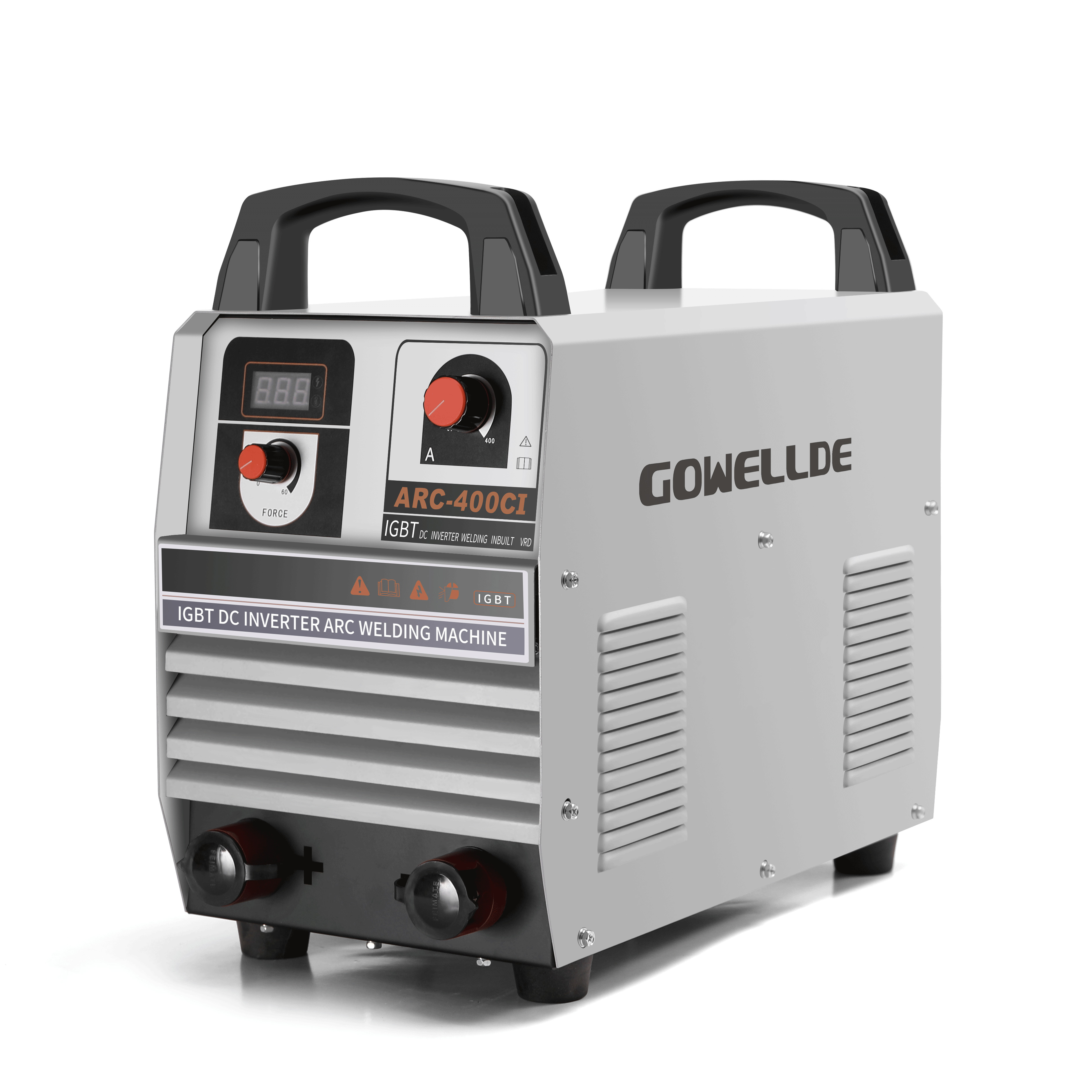

ARC400CI Industrial Use ARC MMA Welder AC 380V 60Hz IGBT Welding Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | ARC400CI | Control Mode | IGBT Inverter |
---|---|---|---|
Rated Input Voltage | AC380V | Rated Input Capacity(KVA) | 18.4 |
High Light | ARC400CI Industrial Use ARC MMA Welder,AC 380V Industrial Use ARC MMA Welder,60Hz IGBT Welding Machine |
Heavy duty ARC400CI Inverter welder ARC MMA welding machine for industrial welding
1. Adopts the mature full-bridge double IGBT module circuit, which has a simple circuit and strong anti-interference.
2. Waterproof, windproof and dustproof designing, it greatly improves the useful life and reliability of the welding machine.
3. Adjustable thrust current adapts various welding processes requirements.
4. Unique heat dissipation fan tunnel design extends the life of welding machine and makes the main devices dustproof and dew proof. The key parts like PCBs are dust-proof and anticorrosive. It can improve reliability.
5. Digitization display current and voltage, it can preset welding current exactly.
6. Multiple protection functions: output short-circuit protection, overheat protection, inverter overcurrent or overvoltage protection.
7. Reasonable structure design makes rain and dust proof. It can meet the construction requirements of the harsh environment.
8. Stably weld when the voltage fluctuates within 20%, the adaptability of the high-temperature environment is particularly prominent.
9. Special control mode makes output current constant, and anti-interference ability strong.
10. Arc striking is easy, arc stable with less spatter, weld appearance is beautiful.
11. Small size, light weight, high efficiency, energy saving, high duty cycle, no noise.
Technical Parameter:
Type | ARC400CI | |
control mode | IGBT inverter | |
Rated input voltage | AC380V | |
Input power frequency(HZ) | 50/60 | |
Rated input current(A) | 28 | |
Rated input capacity(KVA) | 18.4 | |
Cable cross-sectional area | mains input(mm2) | 6 |
power output(mm2) | 35 | |
ground wire(mm2) | 4 | |
Rated output voltage(V) | 36 | |
Duty cycle(%) | 60 | |
Rated output no-load voltage(V) | 75 | |
Current adjustment range(A) | 25-400 | |
Enclosure rating | IP21S | |
Insulation rating | F | |
Cooling method | Air | |
Arc ignition mode | Contact starting arc | |
Power factor | 0.93 | |
Dimensions(mm) | 480*240*430 | |
NW(kg) | 20 |
Advantages Of Electric Welding Machine:
Electric welding machine uses electric energy, which can be converted into heat energy instantaneously, electric is very common, electric welding machine is suitable for working in dry environment, does not need too many requirements, because the volume is small, the operation is simple, the use is convenient, the speed is faster, the advantages such as the strength of welds after welding are widely used in various fields, especially for products requiring high strength, which can instantly connect the same metal material (or dissimilar metal, but different welding method) permanently, after heat treatment, the weld is as strong as the base metal and sealed well, which solves the problem of sealing and strength for the manufacture of storage gas and liquid containers.
Introduction to the principle of electric welding machine:
The electric welding machine, which uses inductance to make contact and the object to be touched to complete the welding function, is actually an extremely high power transformer, which can complete the conversion of electric energy to thermal energy in an instant, with the advantages of simple operation, convenient carrying, fast speed and strong performance, it has been widely used, whether in actual use or in the school laboratory.
FAQ:
Q: Are you a factory or trading company?
A: We are trading company with our own factory with more than 10 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.
2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and order confirmed, the samples fee will be regressed.
3. MOQ:
Generally if you choose the different products,our minimum order qty.also will be different.
4. Payment:
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.L/C, Western Union is fine
5.Q: When can I get the products?
A: You products will be arrived your the nearest domestic port after order confirmed, it's about 30 days.
6.Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and ISO9002 authentication. Quality makes us who we are today. We focus on the quality from the very beginning to the end.
