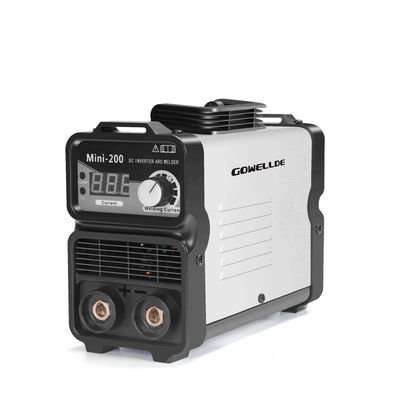

2.5mm Rod Mini ARC Welder 0.73 Factor DC Inverter 4.1KVA 220V Wire Feed Welder
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 4.1KVA 220V Wire Feed Welder | Name | 2.5mm Rod Mini ARC Welder |
|---|---|---|---|
| Model | MINI ARC200 | Feature | IGBT Inverter Technology |
| High Light | 2.5mm Rod Mini ARC Welder,0.73 Factor Mini ARC Welder,4.1KVA 220V Wire Feed Welder |
||
Product Description
2.5mm Rod Mini ARC Welder DC Inverter
1. Using the latest IGBT inverter technology, high reliability.
2. Portable design, widely used for working at height, field operations, interior decoration and other projects.
3. Stable welding current, available for the welding rods of Φ1.6-2.5mm.
4. Stable power supply voltage, super power grid compensation capacity, set abnormal voltage protect for higher reliability.
5. High inverter frequency, more effective and energy saving.
6. Arc starting easier, fewer spatters, stable current and shaping well
7. Suitable for welding low and medium-carbon steels, alloy steel and all other ferrous metals.
Technical Parameter:
| Type | MINI ARC200 |
| Rated input voltage(V) | AC220V±15% |
| Frequency(HZ) | 50/60 |
| Rated input power(KVA) | 4.1 |
| Rated input current(A) | 16.9 |
| Rated no-load voltage(V) | 55 |
| Output current range(A) | 20-200 |
| Rated output voltage(V) | 24.8 |
| Duty cycle(%) | 60 |
| Efficiency(%) | 80 |
| Power factor | 0.73 |
| Insulation level | F |
| Housing Protection Grade | IP21 |
| NW(kg) | 2.15 |
| Dimensions(mm) | 223*100*155 |
| Welding electrode diameter(mm) | Φ1.6-2.5 |
Advantages Of Electric Welding Machine:
Electric welding machine uses electric energy, which can be converted into heat energy instantaneously, electric is very common, electric welding machine is suitable for working in dry environment, does not need too many requirements, because the volume is small, the operation is simple, the use is convenient, the speed is faster, the advantages such as the strength of welds after welding are widely used in various fields, especially for products requiring high strength, which can instantly connect the same metal material (or dissimilar metal, but different welding method) permanently, after heat treatment, the weld is as strong as the base metal and sealed well, which solves the problem of sealing and strength for the manufacture of storage gas and liquid containers.
Introduction to the principle of electric welding machine:
The electric welding machine, which uses inductance to make contact and the object to be touched to complete the welding function, is actually an extremely high power transformer, which can complete the conversion of electric energy to thermal energy in an instant, with the advantages of simple operation, convenient carrying, fast speed and strong performance, it has been widely used, whether in actual use or in the school laboratory.
FAQ:
Q: Are you a factory or trading company?
A: We are trading company with our own factory with more than 10 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.
2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and order confirmed, the samples fee will be regressed.
3. MOQ:
Generally if you choose the different products,our minimum order qty.also will be different.
4. Payment:
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.L/C, Western Union is fine
5.Q: When can I get the products?
A: You products will be arrived your the nearest domestic port after order confirmed, it's about 30 days.
6.Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and ISO9002 authentication. Quality makes us who we are today. We focus on the quality from the very beginning to the end.
