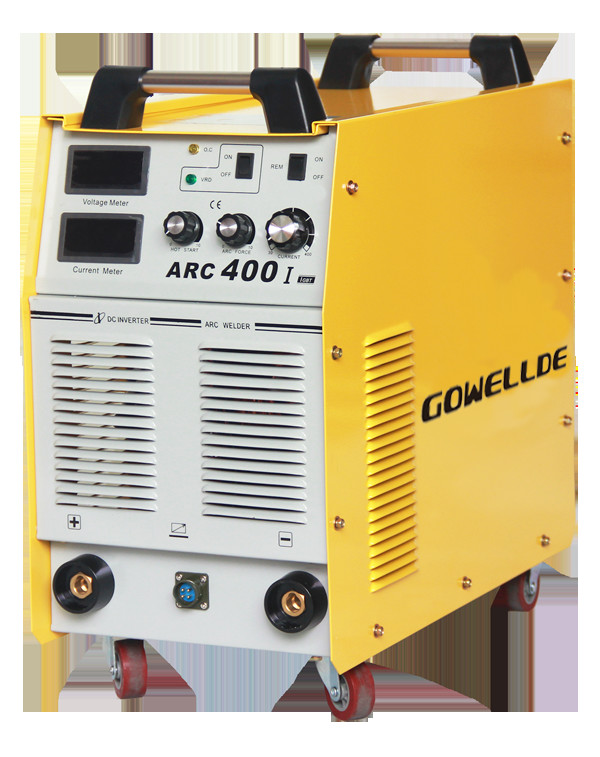

Industrial Use ARC MMA Welder Arc400i Igbt Module 400amps Current
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Industrial Use ARC MMA Welder | Voltage(V) | AC380V±15% |
|---|---|---|---|
| Current Range(A) | 30-400 | (L*W*H)(mm) | 550*280*435 |
| Capacitor | 60UF/700V*1 | Housing Protection Grade | IP21S |
| High Light | IP21S ARC MMA Welder,400amps ARC MMA Welder,Arc400i MMA Welding Machine |
||
Product Description
1. Adjustable thrust current adapts various welding processes requirements.
2. Unique heat dissipation fan tunnel design extends the life of welding machine and makes the main devices dustproof and dew proof. The key parts like PCBs are dust-proof and anticorrosive. It can improve reliability.
3. Digitization display current and voltage, it can preset welding current exactly.
* Multiple protection functions: output short-circuit protection, overheat protection, inverter overcurrent or overvoltage protection.
4. Reasonable structure design makes rain and dust proof. It can meet the construction requirements of the harsh environment.
5. Stably weld when the voltage fluctuates within 20%, the adaptability of the high-temperature environment is particularly prominent.
6. Special control mode makes output current constant, and anti-interference ability strong.
7. Arc striking is easy, arc stable with less spatter, weld appearance is beautiful.
Specification:
| Model | ARC400I | |
| Voltage(V) | AC380V±15% | |
| Frequency(Hz) | 50-60 | |
| Input Power(KVA) | 18 | |
| No-load Voltage(V) | 67 | |
| Current Range(A) | 30-400 | |
| Rated Duty Cycle | 80% | |
| Applied Welding Rod(mm) | ¢1.6-6.0 | |
| Power Factor | 0.93 | |
| Efficiency(%) | 85 | |
| Insulation Grade | F | |
| Housing Protection Grade | IP21S | |
| Weight(Kg) | 36 | |
| (L*W*H)(mm) | 550*280*435 | |
| Carton CBM(m3) | 0.162 | |
| Specification | ||
| Capacitor | 60UF/700V*1 | |
| IGBT | 100A/1200V *1 | |
| Output Rectifier | MURP200600CT*2 | |
