350AMPS Industrial Use ARC MMA Welder Heavy Duty ARC400G IGBT Model
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ARC MMA Welder | Model | ARC400G |
|---|---|---|---|
| Frequency | 50-60(Hz) | Weight(Kg) | 30 |
| Carton CBM(m3) | 0.162 | ||
| High Light | 350AMPS Industrial Use ARC MMA Welder,ARC400G Industrial Use ARC MMA Welder,350AMPS MMA Welding Machine |
||
Product Description

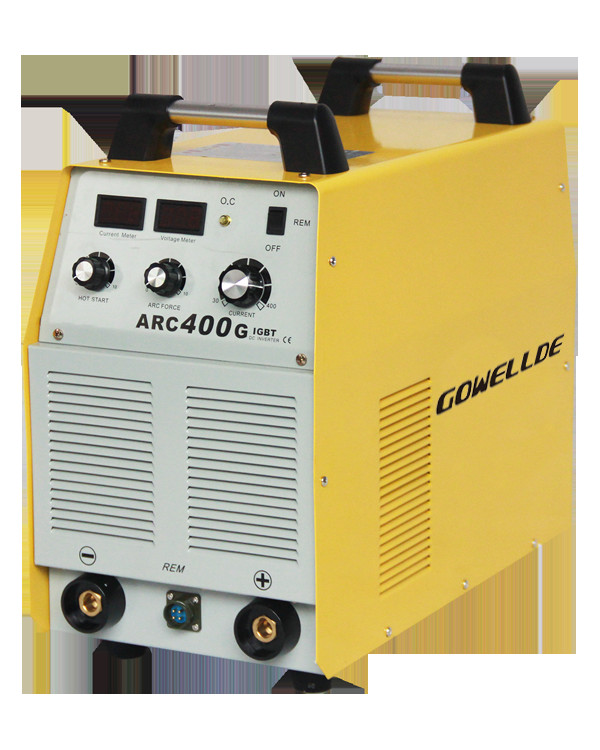

350AMPS Industrial Use ARC MMA Welder Heavy Duty ARC400G IGBT Model
ARC400G IGBT 350AMPS Industrial Use ARC MMA Welder
Heavy duty industrial machines. Top class ARC400G . Inside advanced tri-proof cooling system design,dust-proof,moisture-proof and eroding-proof. So machine is more reliable and durable.Also the duty cycle is 100% at 40 degreen.The machine can work continuously.Hot start and arc force adjustment are available.So it is very good for arc striking and anti-sticking.And also VRD function is selected. Tranformer is nanometer material,can work under very high temperature.Efficiency and power factor is over 90%,so machine is a green energy-saving product.Acidic and basical electrode can be used well.Suitalble for steel structure and fabrication workshop.
Parameter:
| Model | ARC400G | |
| Voltage(V) | AC380V±15% | |
| Frequency(Hz) | 50-60 | |
| Input Power(KVA) | 15.6 | |
| No-load Voltage(V) | 67 | |
| Current Range(A) | 30-280 | |
| Rated Duty Cycle | 60% | |
| Applied Welding Rod(mm) | ¢1.6-6.0 | |
| Power Factor | 0.93 | |
| Efficiency(%) | 85 | |
| Insulation Grade | F | |
| Housing Protection Grade | IP21 | |
| Weight(Kg) | 30 | |
| (L*W*H)(mm) | 520*265*385 | |
| Carton CBM(m3) | 0.162 | |
| Specification | ||
| Capacitor | 60UF/700V*1 | |
| IGBT | MBQ40T120FESC*8 | |
| Output Rectifier | MURP200600CT*2 | |
Wide range of application: ARC MMA Welder is suitable for welding various metal materials, including steel, copper, aluminum, etc.
Good welding effect: By using appropriate electrodes and process parameters, high-quality welding effects can be achieved with high weld strength.
Ease of operation: The ARC MMA Welder is simple to operate and does not require a high skill level, just proper welding skills and practical experience.
Inexpensive: Compared to other welding equipment, the ARC MMA Welder is affordable and has low maintenance costs.
Suitable for outdoor welding: ARC MMA Welder can be used by external power sources such as generators, and is suitable for welding needs in outdoor environments.
