Inverter AC220V Arc / MMA Welding Machine Output Current 20-180A
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | AC IGBT Inverter MMA Welding Machine | Series | 140 Series |
|---|---|---|---|
| Feature | Small Welding Machine | Net Weight | 3.75KG |
| Efficiency(η) | 0.8 | No-load Voltage | 220V |
| Color | Red, Blue, Gray, Other Customized Colors | Output Current Range (A) | 20-180A |
| High Light | 20A MMA Welding Machine,VRD Function MMA Welding Machine,AC220V Home Use Welder |
||
Product Description
Arc Welder Inverter AC220V Arc/MMA Welding Machine
ARC Welding Features:
1. Advanced IGBT inverter technology.
2. Portable(3.8kg) with adjustable shoulder strap.
3. Auto-Protection against over-current and over-heated.
4. Energy Saving-Compared with the traditional SAW machine more efficient.

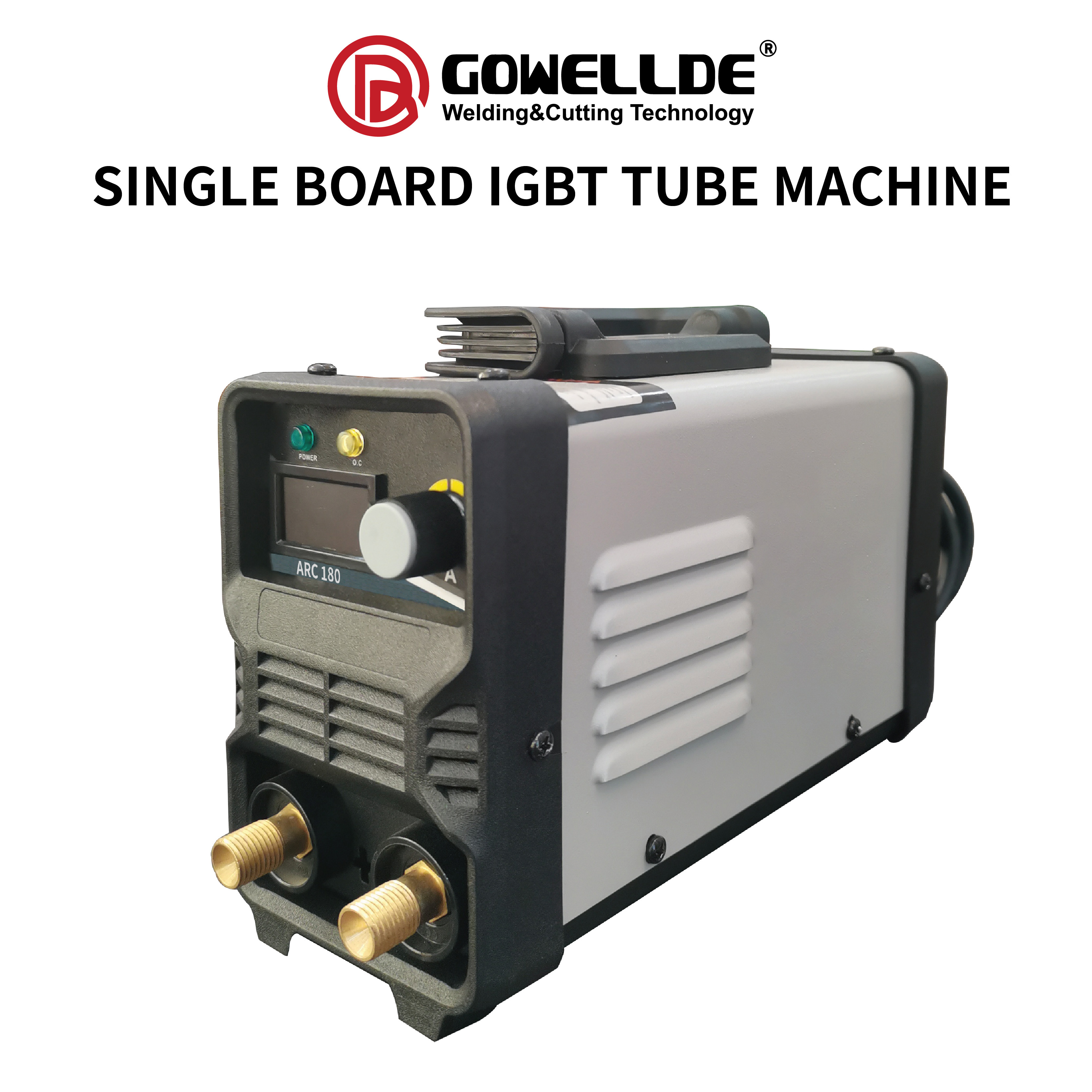

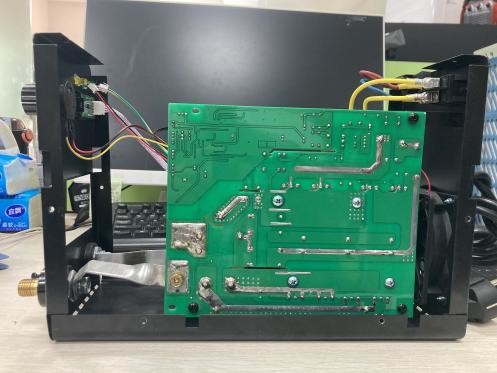

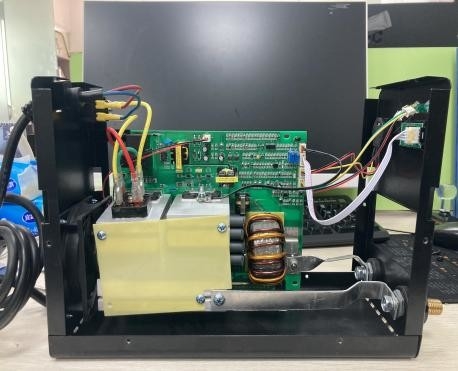

5. Single board IGBT tube machine.
6 Hot start and anti-stick built-in.
7. VRD function can be optional.
4. Energy Saving-Compared with the traditional SAW machine more efficient.
5. Single board IGBT tube machine.
6 Hot start and anti-stick built-in.
7. VRD function can be optional.
| Item | ARC180 |
| Input power source(±15% 50/60HZ) | 1~AC220V |
| Rated Input current (A) | 39/13.6 |
| Rated input power capacity (KVA) | 8.8 |
| Output current range (A) | 180 |
| No-load voltage (V) | 58 |
| Rated duty cycle (%) @25ºC | 60 |
| Efficiency (%) | 80 |
| Power factor (cosφ) | 0.73 |
| Protection class | IP21 |
| Insulation class | F |
| Machine dimensions (mm) | 360*145*300 |
| Packing sizes | 410*180*345 |
| Net weight (Kg) | 3.8 |
| Gross weight(Kg) | 4.3 |
FAQ
Q:What kind of welding machines warranty do you have?
A:We provide a 1-year warranty to most of our welding machines product. For more information, please send the product model and send an email to us.
Q:How do your factory do regarding quality control?
A:Our factory has gained the certificate and ISO9002 authentication. Quality makes us who we are today. We focus on the welding machines quality from the very beginning to the end.
Q:Can I buy other factory's products directly from you?
A:Yes, of course. There are already many customers cooperating with us in this way. We have over 10 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.
Q:Do you offer any welding machines technical support?
A:Yes, we have engineers ready to assist customers with welding machines technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
Company Information:
Shenzhen General Welder Technology Co., Ltd, located at Shajing Subdistrict, Bao'an district, Shenzhen city which is the core city for the inverter type welding and cutting machine. We focused on developing, marketing all kinds of welding and cutting machine and its related goods.
We have below series products:
*ARC welder series, including DIY product, light industry product, and heavy industry product.
*TIG welder series, including TIG&ARC series, TIG pulse series, TIG AC/DC series,
*MIG welder series, including integrated one and separated one, also the pulse MIG machine.
*Plasma cutting machine series including DIY series and heavy industry usage cutting machine.
*Submerge ARC welding machine.
We can also supply you the good quality spare parts of the welding machine. And the accessories of the welding machine.
About us
We are welding supplier established in 2009,We pleased to offer a comprehensive range of MIG welding, TIG welding, MMA welding, Plasma cutting, Welding accessories and Welding consumables. Our objective is to provide products that are of the highest quality, offer more features and innovation in global market. Our commitment to product development, utilizing the latest technology and service.
Customer first and Quality life is our company principle, we have professional R&D team and sales teams, so we are familiar with OEM and ODM cooperation in export business. We are able to provide Asian quality standard and European quality standard.Rohs standard is also avaiable for us.
