2.00KW Industrial Spot Welding Robots For Arc Spraying Handling Automatic
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | HSR-JH605E | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Weight | 196kg | Usage | Robot Welding Support |
| Battery Capacity | 2.50kVA | Condition | New |
| Type | CNC Industrial Welding Robot | Color | Any Color You Wanted |
| High Light | CNC Spot Welding Robots,2KW Spot Welding Robots,1441mm Industrial Welding Robots |
||
Product Description

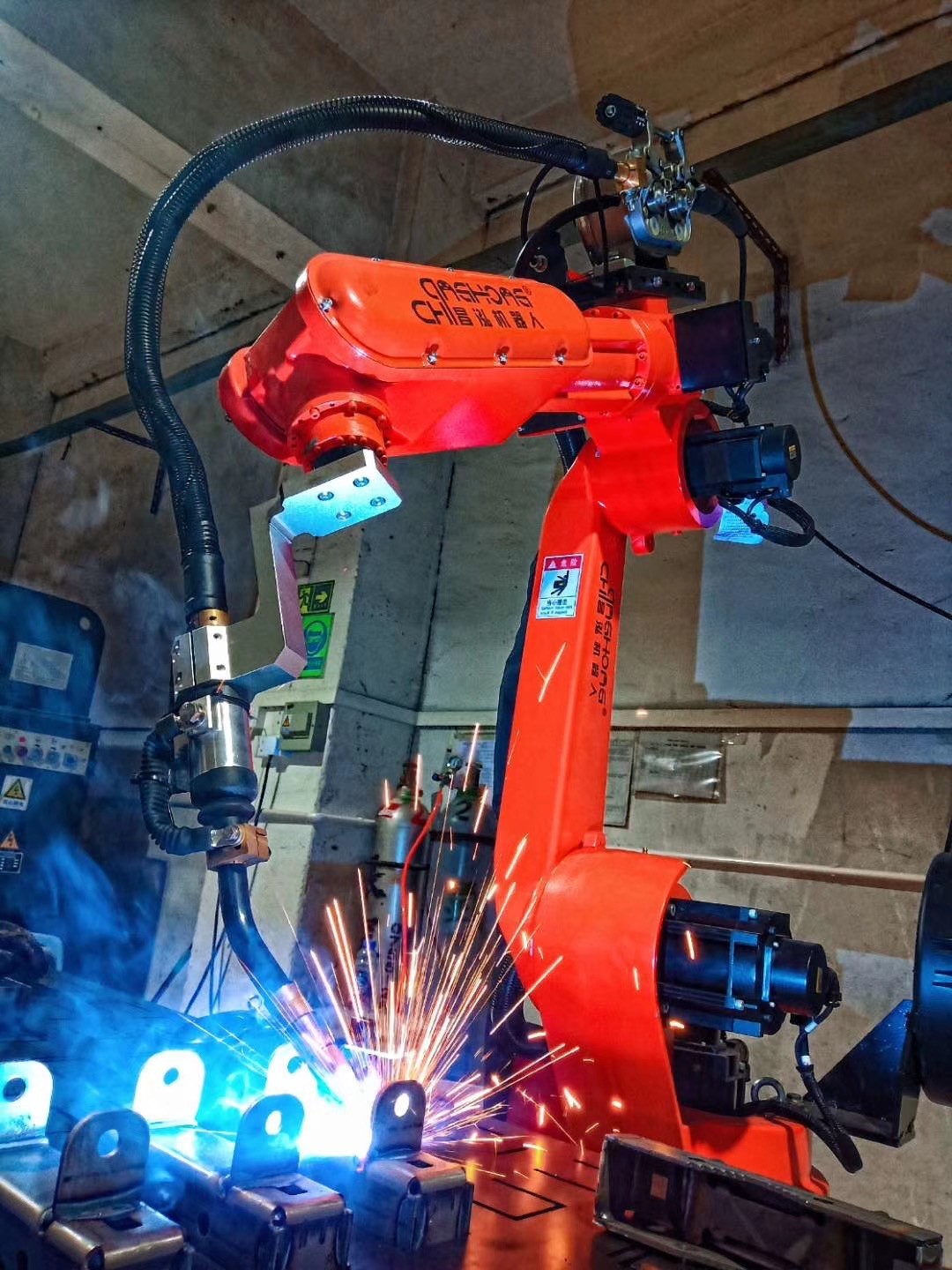

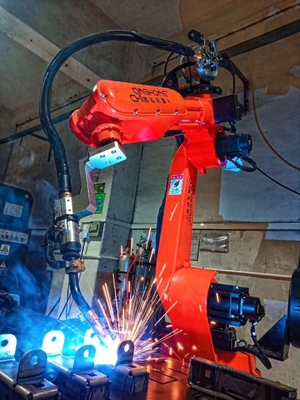

Industrial Spot Welding Robot for Arc Welding Spraying Handling Automatic Robot
Automatic Welding Robot advantage:
1. Robot welding is the use of mechanized programmable tools to fully automate the welding process by performing welding and processing parts. It does not require a human operator to prepare the materials to be welded.
2. Robotic welding is commonly used for resistance spot welding and arc welding in high-volume applications, such as the automotive industry. The many advantages of robotic welding have proven to be a technology that can help many original equipment manufacturers improve accuracy, repeatability, and throughput.
3. The HSR-JH605E welding robot adopts a hollow structure arm, which is light in weight and compact in structure. This can effectively eliminate the interference between the welding torch cable and the peripheral equipment, and it can be stable and reliable even when working in a small
space.
Automatic Welding Robot Parameters:
| Degree of freedom | 6 | |
| Max Load | 5kg | |
| Max. working radius | 1441mm | |
| Repeated positioning accuracy | ±0.06mm | |
| Range of motion | J1 | ±150° |
| J2 | -145°/+60° | |
| J3 | +30°/+270° | |
| J4 | ±120° | |
| J5 | -110°/+140° | |
| J6 | ±360° | |
| Rated speed | J1 | 148°/s,2.58 rad/s |
| J2 | 148°/s,2.58 rad/s | |
| J3 | 148°/s,2.58 rad/s | |
| J4 | 225°/s,3.93 rad/s | |
| J5 | 225°/s,3.93 rad/s | |
| J6 | 225°/s,3.93 rad/s | |
| Max. speed | J1 | 222°/s,3.87rad/s |
| J2 | 222°/s,3.87rad/s | |
| J3 | 222°/s,3.87rad/s | |
| J4 | 337.5°/s,5.89rad/s | |
| J5 | 337.5°/s,5.89rad/s | |
| J6 | 337.5°/s,5.89rad/s | |
| Cable length of teach pendent | 8m | |
| Cable of electric cabinet | 3m | |
| I/O parameter | Digital:32 pin input 31 pin output | |
| Battery capacity | 2.50KVA | |
| Rated power | 2.00KW | |
| Rated voltage | Single phase AC220V | |
| Rated current | 10.8A | |
| Protection level | IP50 | |
| Robot weight | 196kg | |
