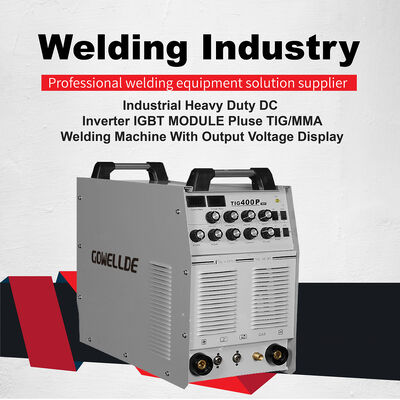

380V/400A, DC Inverter, IGBT Module TIG Welding Machine Welder Tool/Equipment with MMA Function/TIG400mij
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Aluminum MMA Pulse Welding | Type | TIG400MIJ |
|---|---|---|---|
| Duty Cycle(%) | 60 | Pulse Frequency(HZ) | 0.2-50 |
| Dimention(mm) | 560*290*530 | Warranty Time | 1 Year |
| Specification | CE | Trademark | N/M |
| Transport Package | Standards Sea Carton OrCustomized | Real Max Current(a) | 400 |
| High Light | Aluminum MMA Pulse Welding,IP21S MMA Pulse Welding,18.4KVA Harbor Freight Welder |
||
Product Description
380V/400A, DC Inverter, IGBT Module TIG Welding Machine Welder Tool/Equipment with MMA Function
IGBT Module TIG Welding Machine Features:
1. The digitization control circuit, full functions and regulate easily.
2. DC pulse argon arc welding, DC argon arc welding, DC ARC welding three functions.
3. Mainly use for the welding of stainless steel, mild steel, high-strength steel, copper and the other alloys materials.
4. Applicate extensively with aerospace, locomotive, ship, press container, petrochemical, motorbike, bicycle, hydropower, steel wood furniture fields and so on.
5. Digitization inverter technology, greatly improve the whole machine's performance and reliability.
Technical Parameter:
|
Type |
TIG400MIJ |
|
|
control mode |
IGBT inverter |
|
|
Rated input voltage |
AC380V |
|
|
Rated input capacity(KVA) |
18.4 |
|
|
Cable cross-sectional area |
mains input(mm2) |
6 |
|
power output(mm2) |
50 |
|
|
ground wire(mm2) |
4 |
|
|
Duty cycle(%) |
60 |
|
|
Rated output no-load voltage(V) |
72 |
|
|
Output current adjustment range(A) |
5-400 |
|
|
Starting current adjustment range(A) |
10-160 |
|
|
Pulse frequency(HZ) |
0.2-50 |
|
|
Arc ignition mode |
High frequency arc striking |
|
|
Enclosure rating |
IP21S |
|
|
Insulation rating |
F |
|
|
Cooling method |
Air |
|
|
Power factor |
0.93 |
|
|
Dimensions(mm) |
560*290*530 |
|
|
Host weight(KG) |
25 |
|
Advantages Of Electric Welding Machine:
Electric welding machine uses electric energy, which can be converted into heat energy instantaneously, electric is very common, electric welding machine is suitable for working in dry environment, does not need too many requirements, because the volume is small, the operation is simple, the use is convenient, the speed is faster, the advantages such as the strength of welds after welding are widely used in various fields, especially for products requiring high strength, which can instantly connect the same metal material (or dissimilar metal, but different welding method) permanently, after heat treatment, the weld is as strong as the base metal and sealed well, which solves the problem of sealing and strength for the manufacture of storage gas and liquid containers.
FAQ:
Q: Are you a factory or trading company?
A: We are trading company with our own factory with more than 10 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.
Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and order confirmed, the samples fee will be regressed.
MOQ: Generally if you choose the different products,our minimum order qty.also will be different.
Payment: Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.L/C, Western Union is fine.
Q: When can I get the products?
A: You products will be arrived your the nearest domestic port after order confirmed, it's about 30 days.
Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and ISO9002 authentication. Quality makes us who we are today. We focus on the quality from the very beginning to the end.
