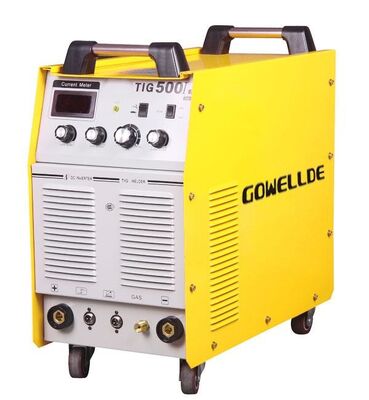

TIG500I Stick TIG MMA Welder AC 380V IGBT Wire Feeder Welding Machine

Place of Origin GUANGDONG,CHINA
Brand Name GOWELLDE
Certification CE
Model Number TIG500I
Minimum Order Quantity 100 Pieces
Packaging Details CARTON
Delivery Time 30 DAYS
Payment Terms T/T, L/C, Western Union
Supply Ability 30000PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name TIG500I Stick TIG MMA Welder Type IGBT Wire Feeder Welding Machine
Voltage AC 380V
High Light

TIG500I Stick TIG MMA Welder

,

AC 380V Stick TIG MMA Welder

,

IGBT Wire Feeder Welding Machine

Leave a Message
Product Description



Adopting powerful IGBT MODULE inverter technology, high IGBT switching frequency as 20KHZ, rapid dynamic response optimized welding performance.Adopting high-frequency increasing voltage arc striking technology, easy arc striking, well recognition with users.Unique output characteristics design, suitable for wire filling welding, perfect welding results.Dual welding process: TIG DC/MMA.2T/4T, down slope is optional.Auto-protection against over-voltage, over loading and over-heat, reliable and durable.Acidic and basic electrode can be used well.Suitable for steel structure and fabrication workshop



Specification:

Model
Item
TIG500I
Voltage(V) AC380V ±15%
Frequency(Hz) 50-60
Input Power(KVA) 18.2
No-load Voltage(V) 56
Current Range(A) 10-500
Rated Duty Cycle 80%
Applied Welding Rod(mm) ¢1.6-5.0
Power Factor 0.93
Efficiency(%) 85
Insulation Grade F
Housing Protection Grade IP21S
Weight(Kg) 36
(L*W*H)(mm) 550*280*435
Carton CBM(m3) 0.162
Specification
Capacitor 60UF/700V*1
IGBT MODULE 100A/1200V*1
Output Rectifier MURP20060CT*2



Advantages Of Electric Welding Machine:
Electric welding machine uses electric energy, which can be converted into heat energy instantaneously, electric is very common, electric welding machine is suitable for working in dry environment, does not need too many requirements, because the volume is small, the operation is simple, the use is convenient, the speed is faster, the advantages such as the strength of welds after welding are widely used in various fields, especially for products requiring high strength, which can instantly connect the same metal material (or dissimilar metal, but different welding method) permanently, after heat treatment, the weld is as strong as the base metal and sealed well, which solves the problem of sealing and strength for the manufacture of storage gas and liquid containers.



Introduction to the principle of electric welding machine:
The electric welding machine, which uses inductance to make contact and the object to be touched to complete the welding function, is actually an extremely high power transformer, which can complete the conversion of electric energy to thermal energy in an instant, with the advantages of simple operation, convenient carrying, fast speed and strong performance, it has been widely used, whether in actual use or in the school laboratory.



FAQ:

Q: Are you a factory or trading company?
A: We are trading company with our own factory with more than 10 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.

2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and order confirmed, the samples fee will be regressed.

3. MOQ:
Generally if you choose the different products,our minimum order qty.also will be different.

4. Payment:
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.L/C, Western Union is fine

5.Q: When can I get the products?
A: You products will be arrived your the nearest domestic port after order confirmed, it's about 30 days.

6.Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and ISO9002 authentication. Quality makes us who we are today. We focus on the quality from the very beginning to the end.
