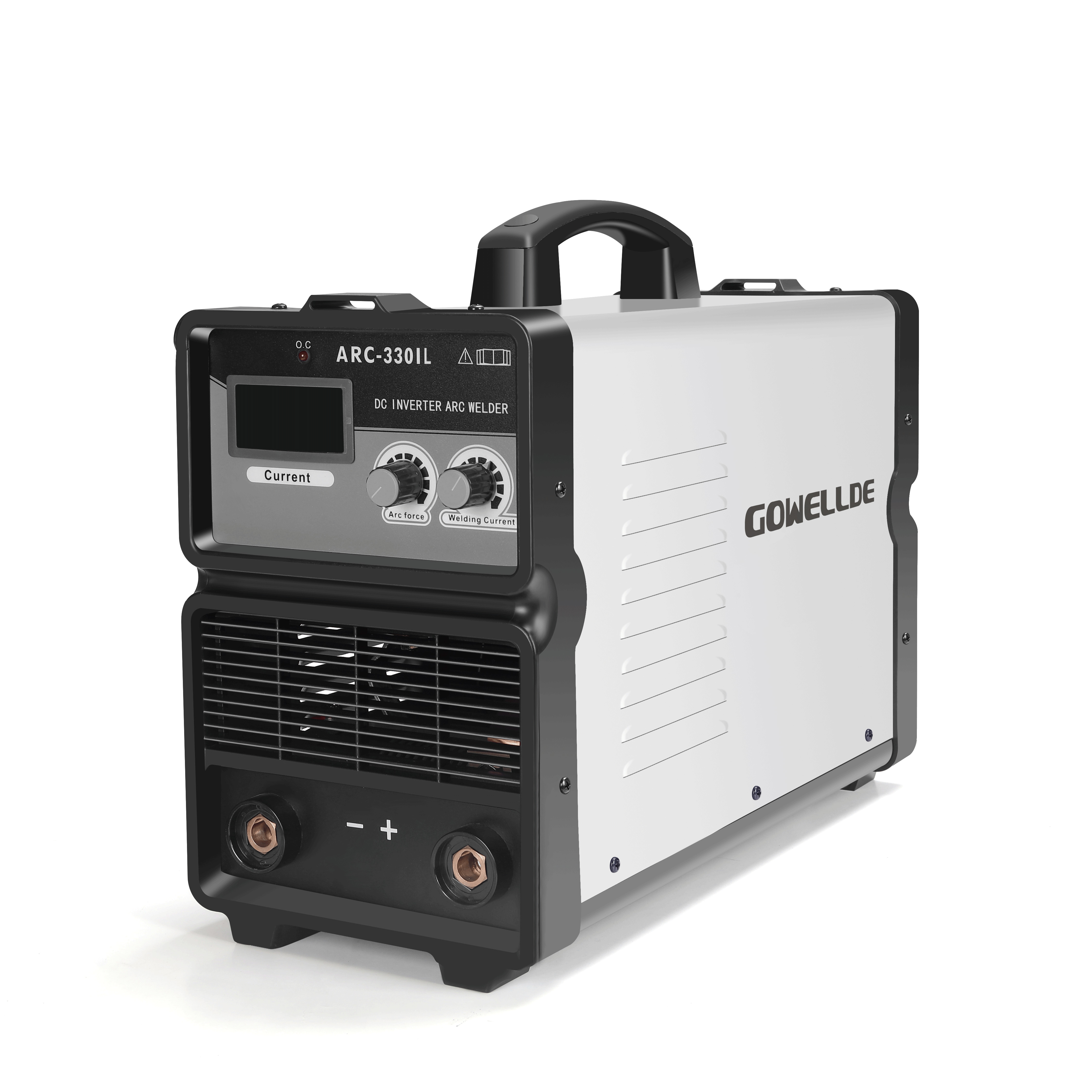

Cast Iron Portable Welding Machine 220V Waterproof Mini Inverter IP21

Place of Origin GUANGDONG,CHINA
Brand Name GOWELLDE
Certification CE
Model Number ARC330IL
Minimum Order Quantity 100 Pieces
Packaging Details CARTON
Delivery Time 30 DAYS
Payment Terms T/T, L/C, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Waterproof Mini Inverter IP21 Type Cast Iron Portable Welding Machine
Model ARC330IL Voltage 220V
High Light

Cast Iron Portable Welding Machine 220V

,

Waterproof Portable Welding Machine 220V

,

IP21 Mini Inverter Welding Machine

Leave a Message
Product Description

Cast Iron Portable Welding Machine 220V Waterproof Mini Inverter



1. Adopt IGBT tube, high frequency, giving more stable circuit and better performance.



2. Stable welding current, available for the welding rods of Φ1.6-4.0mm.



3. Suitable for all carbon steel and other ferrous metals welding, saving energy and power.



4. Arc starting easier, fewer spatters, stable current and shaping well.



5. Wide-voltage circuit design with smart transformation, suitable for welding low and medium-carbon steels, alloy steel and all other ferrous metals.



6. Widely used in the field of pipeline, chemical industry, automobile, shipbuilding, electronic power construction, nuclear power, war industry, industrial installation, bridge construction and other open side operation.





Technical Parameter:





Type ARC330IL
Rated input voltage(V) AC220V/380V±15%
Frequency(HZ) 50/60
Rated input power(KVA) 9
Rated input current(A) 40.4/23.4
Rated no-load voltage(V) 78
Output current range(A) 20-230
Rated output voltage(V) 29.6
Duty cycle(%) 60
Efficiency(%) 80
Power factor 0.73
Insulation level F
Housing Protection Grade IP21
NW(kg) 9.45
Dimensions(mm) 477*205*305
Welding electrode diameter(mm) Φ1.6-4.0
